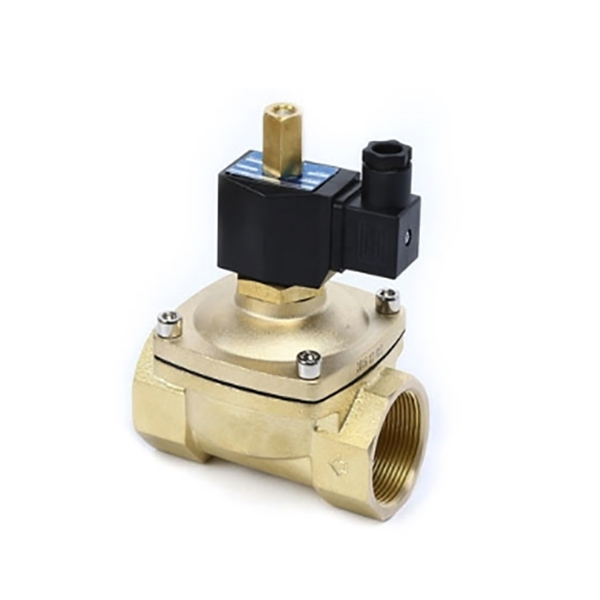

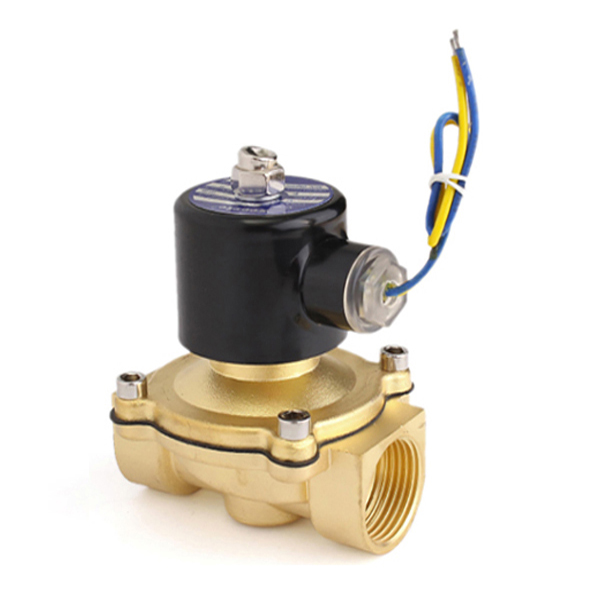

Brass Solenoid Valve Electric Solenoid Valve
1" 110V AC Solenoid Valve Brass Body Normally Closed, VITON SEAL
size: 1/2"-2"
Flow Aperture: 25 mm
Body Material: Brass
Gasket / Diaphragm / Seal: NBR
Operation Type: Semi-direct Lift Valve
Operation Mode: Normally Closed
Voltage: AC 110V ± 10%
Power rating: 22 VA
Suitable Media: Air, water, oil, etc.
Operational pressure range: Air/Water: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar(0 to 72 PSI)
Flow capacity: 12 gallons per minute (GPM) of water at 60 oF with a pressure drop of 1 PSI
Flow value: 12 Cv
Temperature, Minimum: 23 degrees Fahrenheit (-5 degrees Celsius)
Temperature Maximum: 176 degrees Fahrenheit (80 degrees Celsius)
OVERHEATING WARNING: Not designed for continuous operation(not a 100% duty cycle). While energized, under normal operating conditions, solenoid valve will get HOT. The coil will reach a maximum temperature of about 176°F (80℃), which is fully complied with national standard: JB/T7352-2010. If energized continuously for more than 8 hours the coil may burn.
