1.Description of Brass Ball Valves
Brass Ball Valves material CU>57%,and Pb less than 2.5%.The Working Madium is water,gas,oil
High Pressure for PN40.Thread will be:BSP,NPT OR BSPT as client requirement. Design as client samples is available.
2.Application of Brass Ball Valves-
Plumbing and infrastructure

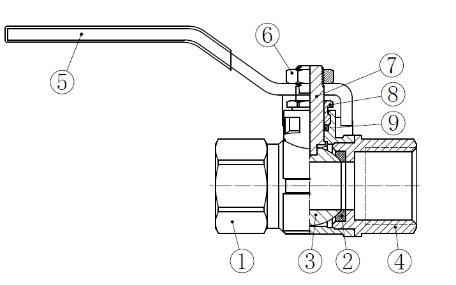

3.Component Of Brass Ball Valves-
| NO. | ITEM | QTY | MATERIAL |
| 1 | BALL VALVE BODY | 1 | BRASS |
| 2 | SEALING WASHER | 2 | PTFE |
| 3 | BALL | 1 | BRASS |
| 4 | BONNET | 1 | BRASS |
| 5 | HANDLE | 1 | PLATED STEEL |
| 6 | HANDLE NUT | 1 | PLATED STEEL |
| 7 | STEM | 1 | BRASS |
| 8 | GLAND NUT | 1 | BRASS |
| 9 | GASKET | 1 | PTFE |
Product Description
Commodity Name: Brass Forged Gate Valve
Description: brass forged body, brass disc, Brass Bonnet, with Steel/casting iron/aluminum handle, 200wog, 250wog, PN20 design, Thread End
The valve is suitable for low pressures on condition that non aggressive fluids are used
Application: low pressures on condition that non aggressive fluids are used
Material: Forged Brass ( CW617N, CW614 ,CW602N,ASTM C37700)
Size: 1/2''-4''
Technical Specification:
Working pressure: 1.6Mpa
Tested Pressure: 2.0Mpa
Working medium: Water, oil, gas
Working temperature: -20° C≤ T≤ 150° C
Thread standard: ISO7/1, ISO228, NPT, DIN2999
As for the handle, it could casting Iron, Steel or aluminum
Package details: Each valve by one polybag, inner box, Cartons with wooden pallets.
